Keyboard Build

February 20, 2023

Behold The Corne LP Pyramid!

My keyboard build is done, it took lots of work but I think it is rather 🔥
The journey was long (about 5 hours total, 2 for soldering, 3 between designing the cases and programming the custom firmware)
The true battle really came from my dip💩 purchase of cylindrical glass diodes. Couple that with bad traces on the pcb and the firmware being kind of meh at the time. It gave me quite a ride.

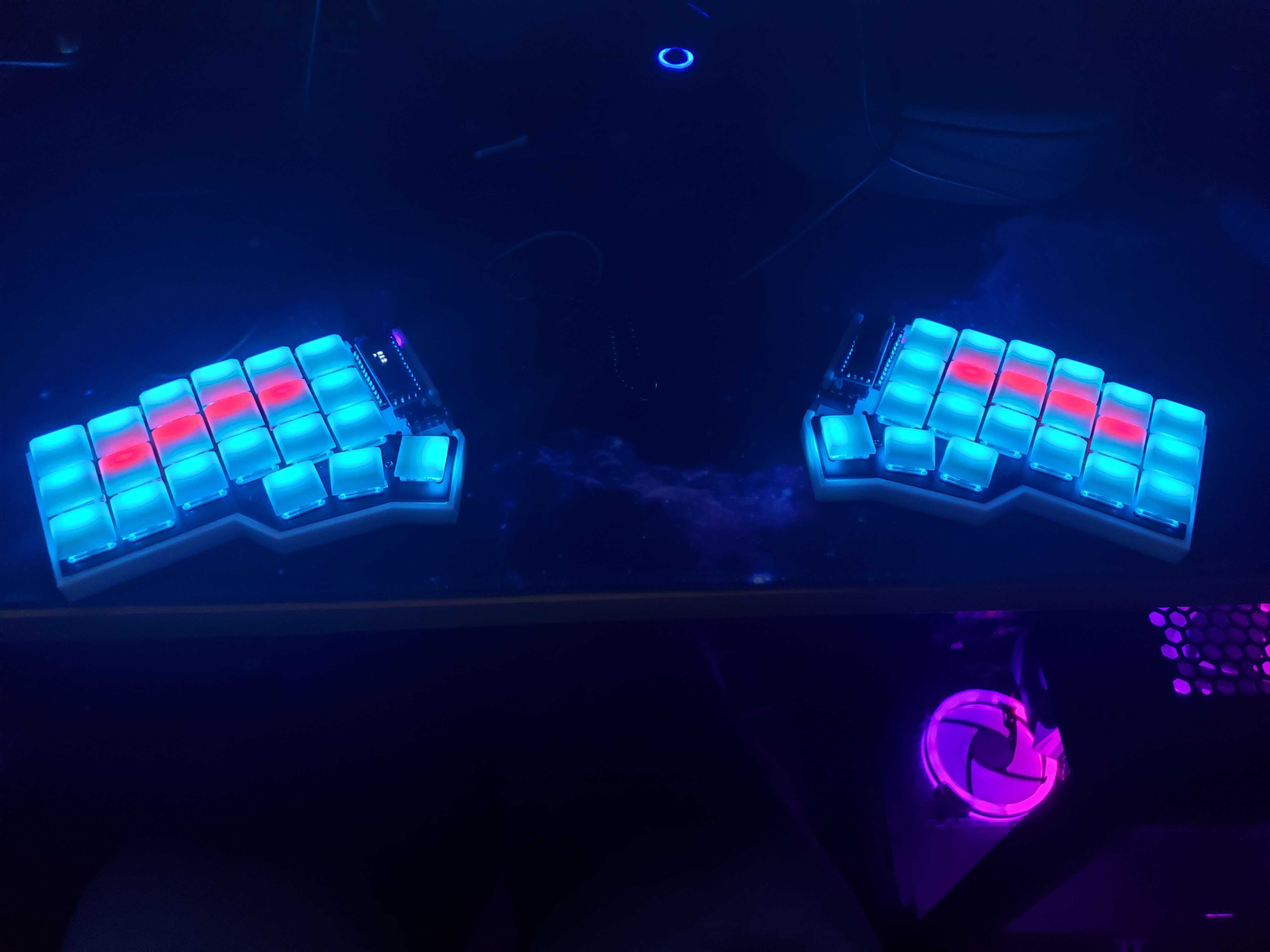

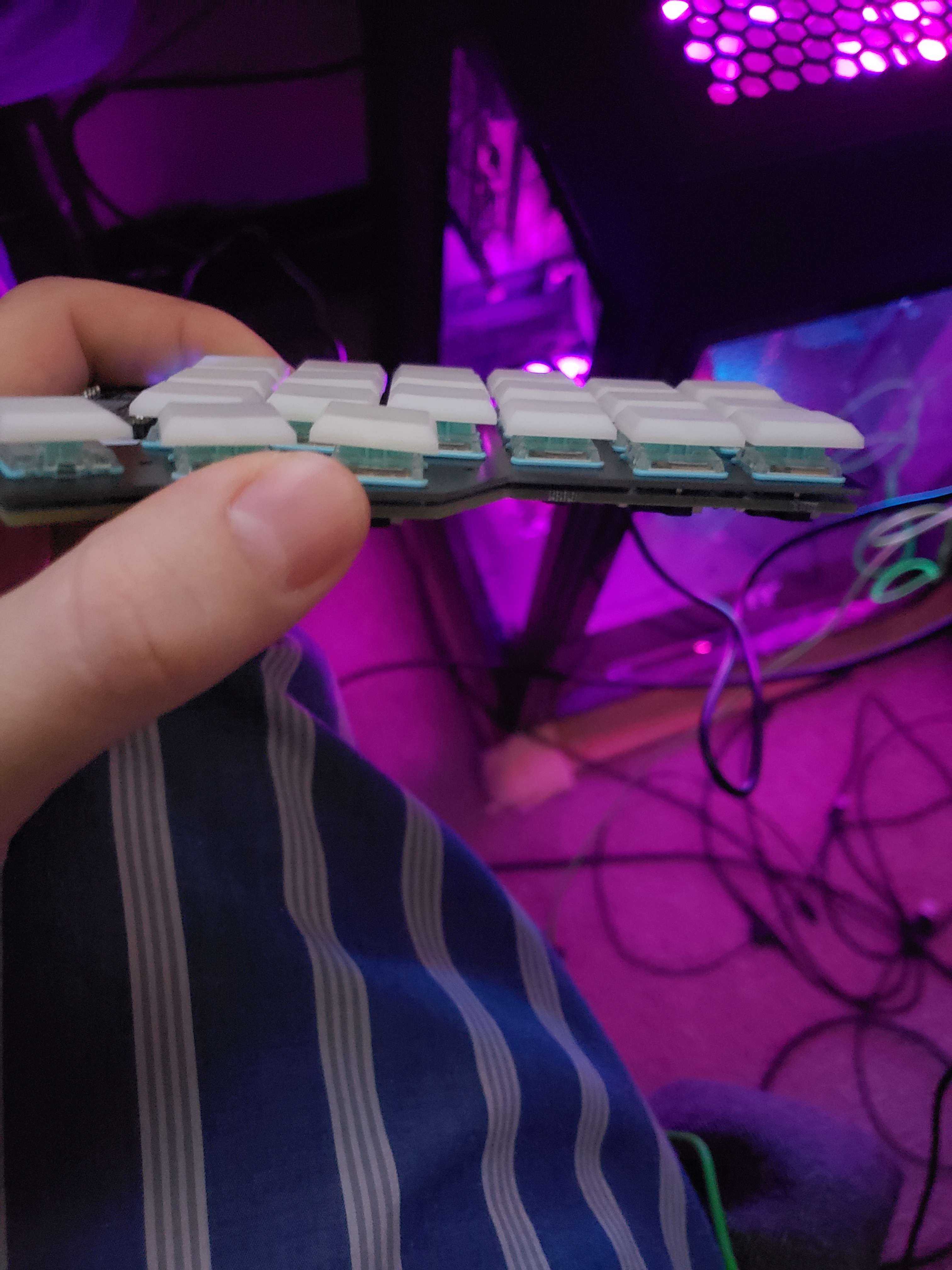

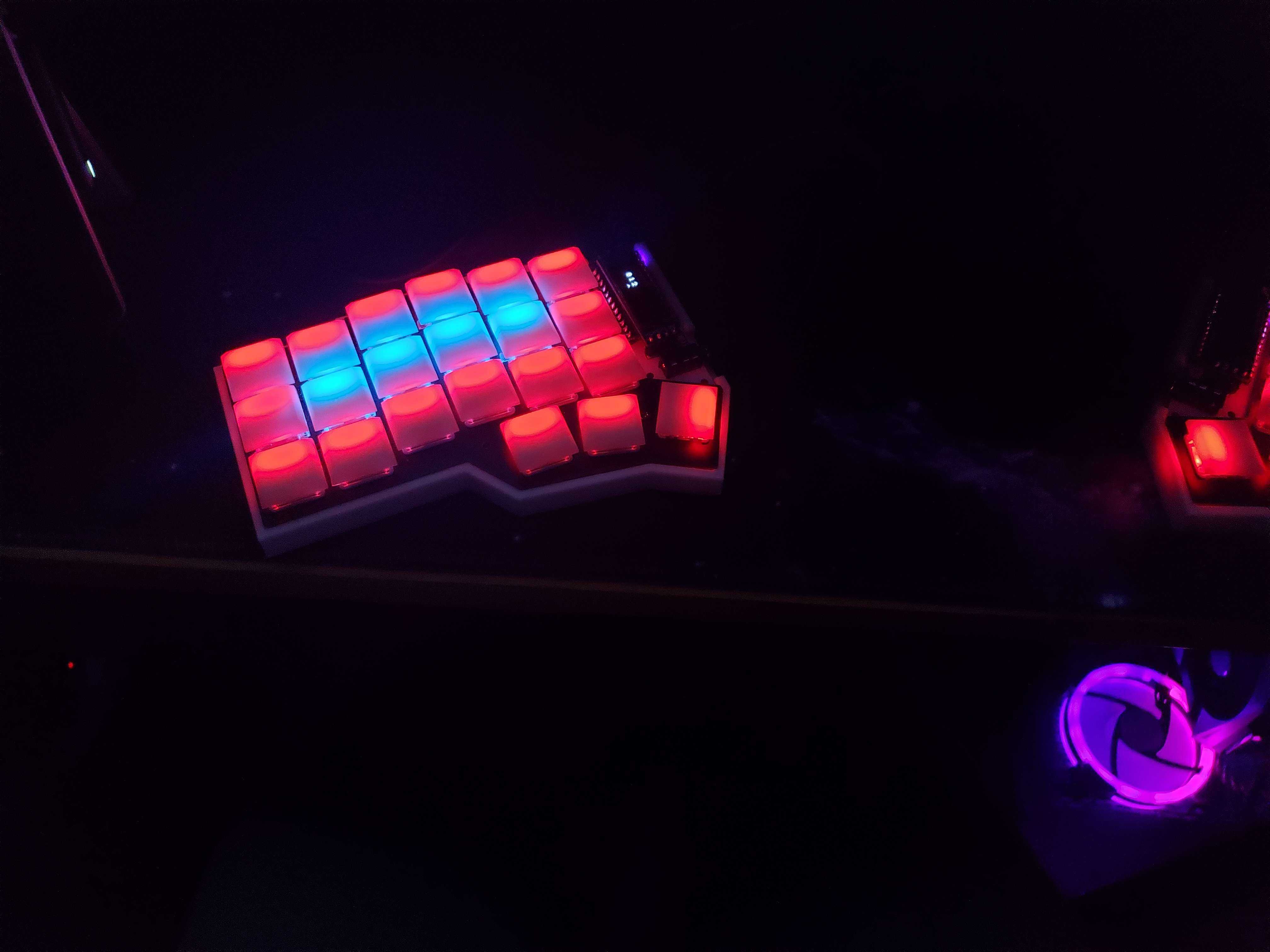

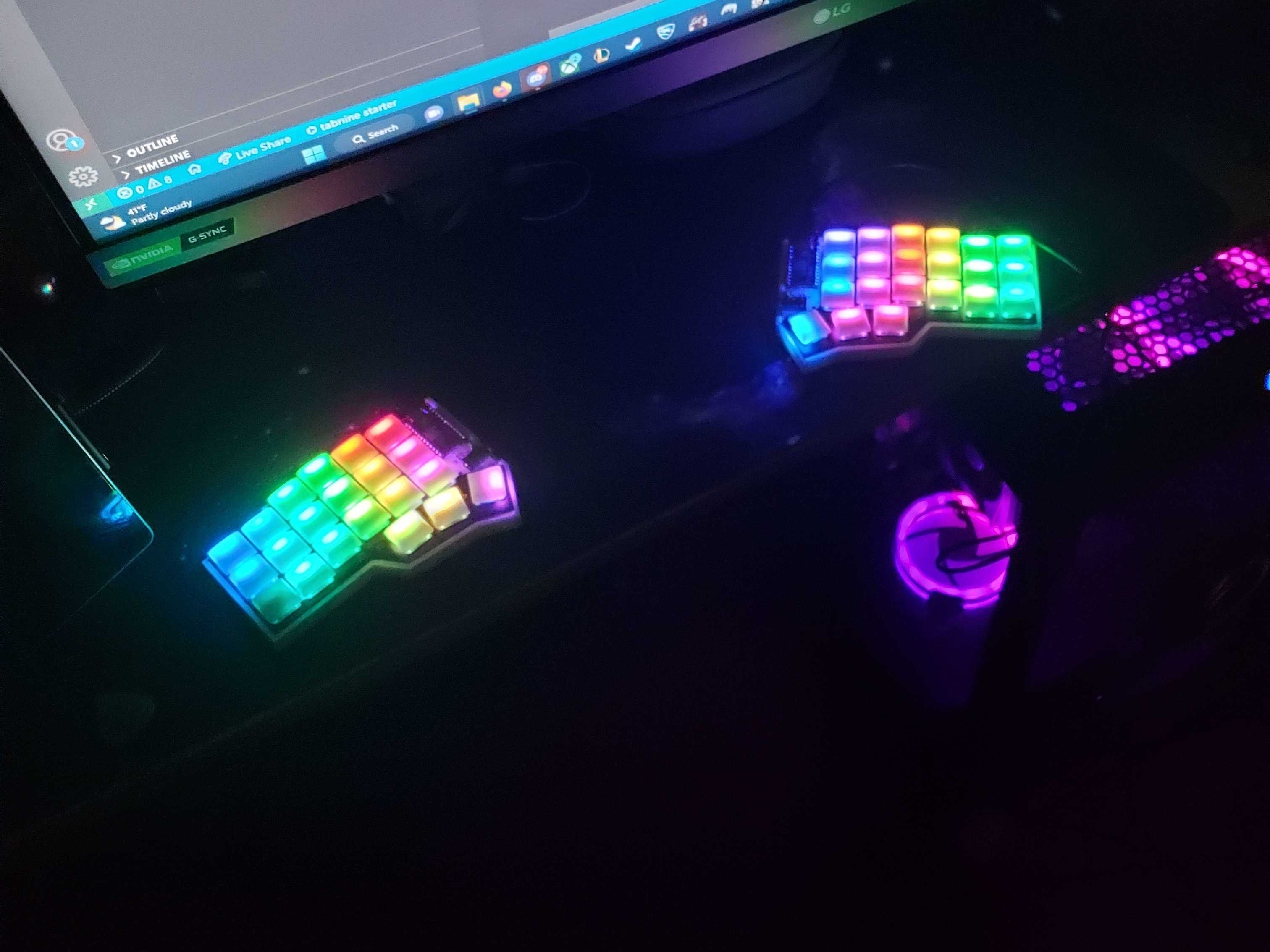

With that this turned into quite the fun project, and with how razer thin this thing is I realized as I used it that I was way more after ergonomics so I designed and printed my own cases and dock for the setup. After I started using it I quickly realized that I didn’t like just using the tiny screens to check my current layer, so I added rgb modes for my different layers into my custom firmware.

🌱Here's an image dump🌼

alt text

alt text

alt text

alt text
